Mixer
Spiral mixer
removable bowl
80 - 120 - 160 - 200 - 250 - 300 Kg
Spiral mixers suitable for the small bakery with a semi-industrial production for soft dough mixtures with more than 55% hydratation.

Technical data
- Dough capacity from 80 to 280 kgs.
- 3 motors (one for THE spiral tool, one for the bowl and one for the hydraulic unit).
- 2 speeds on spiral tool and one speed on the bowl with possibility of reverse bowl rotation in first speed.
- Control panel with two double-scale electro- mechanical timers or with an electronic control panel with bypass selector.
- Reinforced version is available to work stiff dough with more than 45% hydration.
- Mobile bowl protection, scraper, spiral tool attachment.

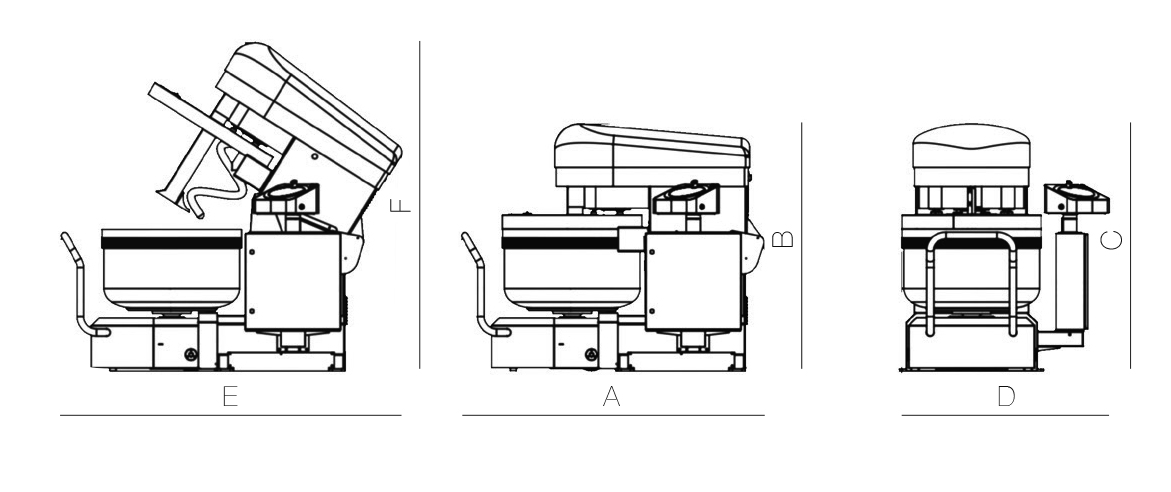

model | dough capacity |
flour capacity |
spiral motor |
bowl motor |
weight | dimensions | power supply | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Kg | Kg | kW | kW | Kg | A cm |
B cm |
C cm |
D cm |
E cm |
F cm |
||
KMR 80 | 80 | 50 | 4.0/8.0 | 0.75 | 800 | 177 | 145 | 83 | 123 | 196 | 184 | 400V | 50HZ | 3Ph |
KMR 120 | 120 | 75 | 4.0/8.0 | 0.75 | 820 | 177 | 145 | 83 | 123 | 196 | 184 | 400V | 50HZ | 3Ph |
KMR 160 | 160 | 100 | 6.0/12.0 | 0.75 | 1150 | 182 | 154 | 88 | 132 | 206 | 204 | 400V | 50HZ | 3Ph |
KMR 200 | 200 | 125 | 6.0/12.0 | 0.75 | 1200 | 182 | 154 | 88 | 134 | 206 | 204 | 400V | 50HZ | 3Ph |
KMR 250 | 250 | 150 | 9.0/15.0 | 1.1 | 1240 | 193 | 154 | 88 | 136 | 217 | 204 | 400V | 50HZ | 3Ph |
KMR 300 | 300 | 175 | 9.0/15.0 | 1.1 | 1280 | 193 | 154 | 88 | 136 | 217 | 204 | 400V | 50HZ | 3Ph |
