Mixer

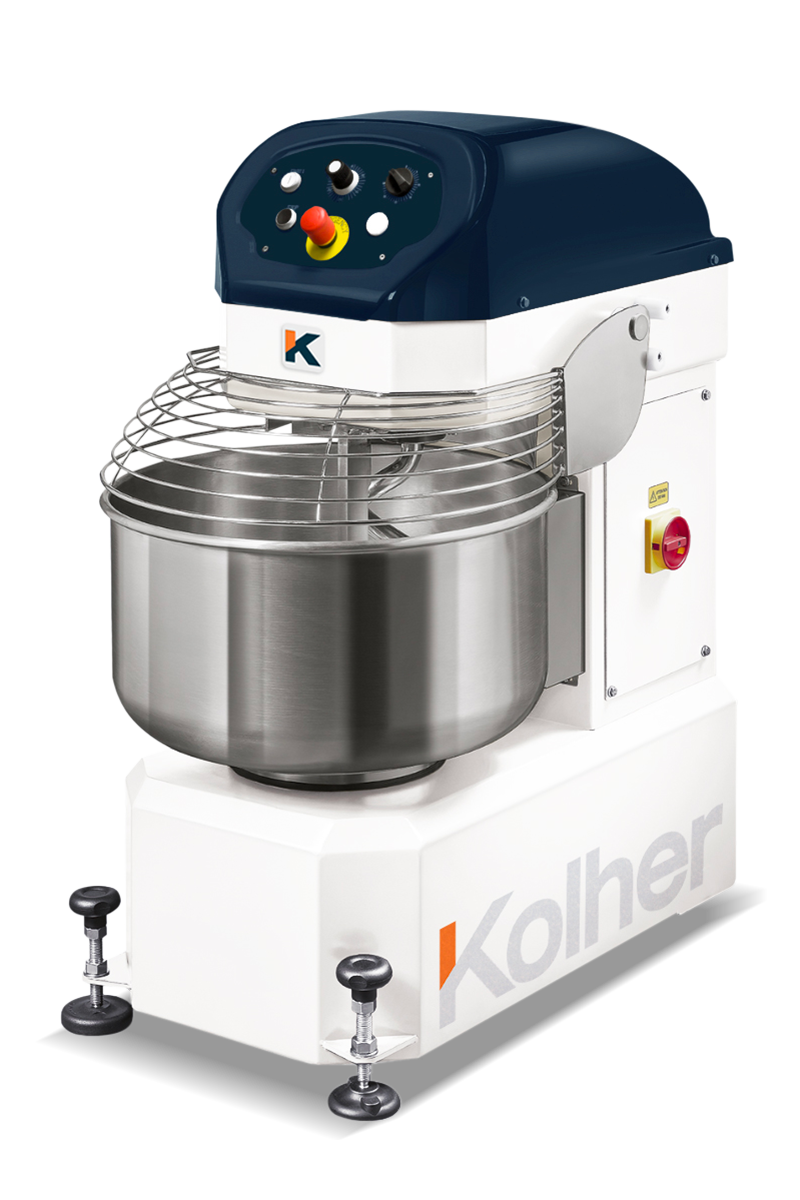

Spiral mixer

fixed bowl

30 - 40 - 50 Kg

A simple, robust and reliable machine designed to ensure optimum performance.

Technical data

  • Mixing capacity from 30 to 50 kg.
  • With single-phase motor with inverter.
  • Speed 70/210 rpm.
  • Reinforced spiral, bread bowl, calibrated dough cut column.
  • Control panel at the top of the machine.
  • Retractable castors.
  • High resistance stainless steel bowl, spiral arm and breaking bar.
  • Stainless steel safety guard.
  • Pre-lubricated ball bearing transmission.
  • Non-toxic powdered epoxy certified coating.
Optional:
  • 300 RPM.
  • Lights to illuminate dough.
  • Kit 2 speeds (2 motors, 2 timers and bowl reverse).

model dough
capacity
flour
capacity
spiral
motor

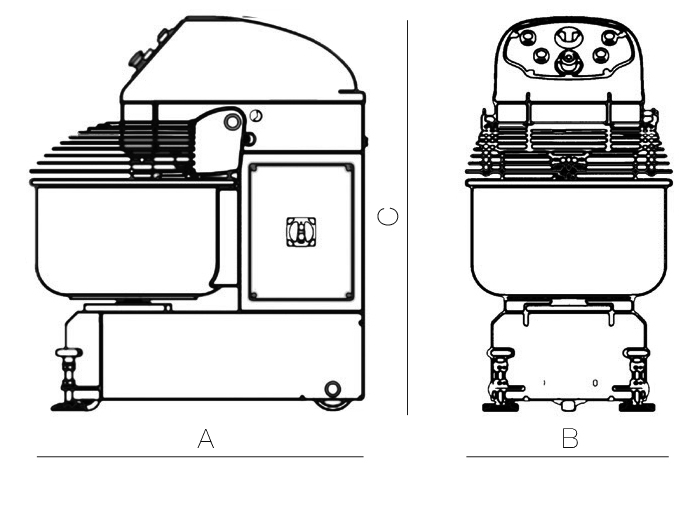

speed weight dimensions power supply
Kg Kg kW RPM Kg A
cm
B
cm
C
cm
KM 30 30 18 2.2 70/210 160 80 48 102 230V | 50/60HZ | 1Ph
KM 40 40 22 2.2 70/210 165 85 54 102 230V | 50/60HZ | 1Ph
KM 50 50 26 3 70/210 210 95 54 110 230V | 50/60HZ | 1Ph
