Mixer

Lifter

80 - 120 - 160 - 200 - 280 Kg

Dati tecnici

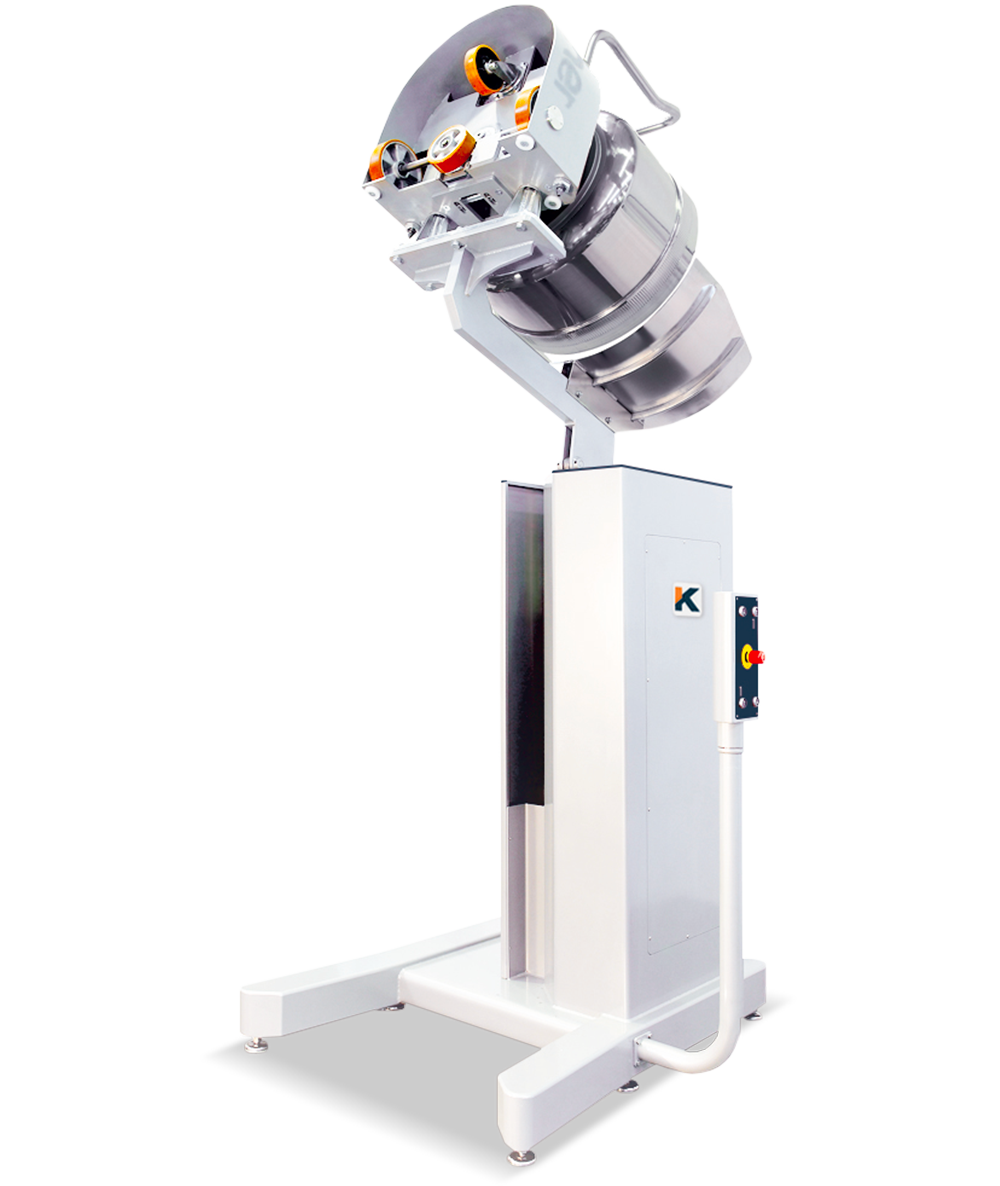

  • Hydraulic bowl lifter.
  • Suitable for 80/120/160/200/280 bowl-trolleys.
  • Discharge backwards.
  • Four standard discharge heights available:
    - Onto table at 1100 mm or 1540 mm;
    - Into divider at 2050 mm or 2500 mm;
  • Intermediate discharge heights: available upon request.
  • Standard voltage: 400 Volt 50 Hz 3 PH.
  • Sturdy construction in painted steel fitted with stainless steel anti-vibrating feet designed for fastening to the floor.
  • Designed for a semi-industrial use (2 shifts per day).

model MAX WEIGHT
LIFTED
discharge
height
HYDRAULIC
UNIT POWER
weight dimensions power supply
Kg mm RPM Kg A
cm
B
cm
C
cm
LIFT 1000 650 1110 2.2 650 200 155 160 400V | 50HZ | 3Ph
LIFT 1500 650 1540 1.5 655 175 165 145 400V | 50HZ | 3Ph
LIFT 2000 650 2050 1.5 805 175 165 195 400V | 50HZ | 3Ph
LIFT 2500 650 2050 1.5 1000 190 170 230 400V | 50HZ | 3Ph
