Mixer

Spiral mixer

fixed bowl

60 - 80 - 120 - 160 - 200 - 250 - 300 Kg

Machine suitable for mixing dough with more than 60% hydration.

Technical data

  • 2 motors, 2 speeds, 2 timers and bowl reverse.
  • Spiral arm speed 105/210 rpm, bowl speed 14 rpm.
  • Belt transmission.
  • Possibility to mix small quantities.
Optional:
  • Lights to illuminate dough.
  • Temperature sensor.
  • Closed bowl protection.
  • Kit for dough hydration lower than 60%.

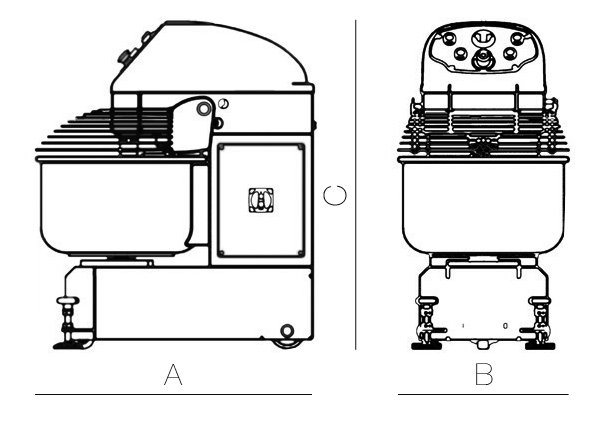

model dough
capacity		 flour
capacity		 spiral
motor		 bowl
motor		 weight dimensions power supply
Kg Kg kW kW Kg A
cm		 B
cm		 C
cm
KM 60 60 36 11.5/3.0 0.37 230 100 59 110 400V | 50HZ | 3Ph
KM 80 80 50 2.6/4.8 0.55 330 120 73 140 400V | 50HZ | 3Ph
KM 120 120 80 2.6/4.8 0.55 380 125 78 104 400V | 50HZ | 3Ph
KM 160 160 100 2.6/4.8 0.75 600 143 87 1574 400V | 50HZ | 3Ph
KM 200 200 125 5.0/8.0 0.75 680 146 93 157 400V | 50HZ | 3Ph
KM 250 250 150 8.0/12.5 1.1 800 155 103 165 400V | 50HZ | 3Ph
KM 300 300 185 8.0/12.5 1.1 850 163 108 165 400V | 50HZ | 3Ph
