Mixer
Double arm mixer
46 - 57 - 64 - 100 - 110 - 130 - 155 Kg
These double arm mixers guarantee the high quality of the finished product, thanks to the movement of the two arms, which incorporate oxygen into the dough and reduce overheating to a minimum.

Technical Data
- Traditional operating system with twospeed self-braking motor.
- Capacities from 46 to 155 kg.
- Painted steel structure mounted on wheels.
- Stainless steel fixed bowl.
- Transparent AR and steel Bowl guard.
- From 40 to 60 beats/min.
- 2 speeds.
- Variable speed.
- Different variable speeds for bowl and arms controlled by touch panel.

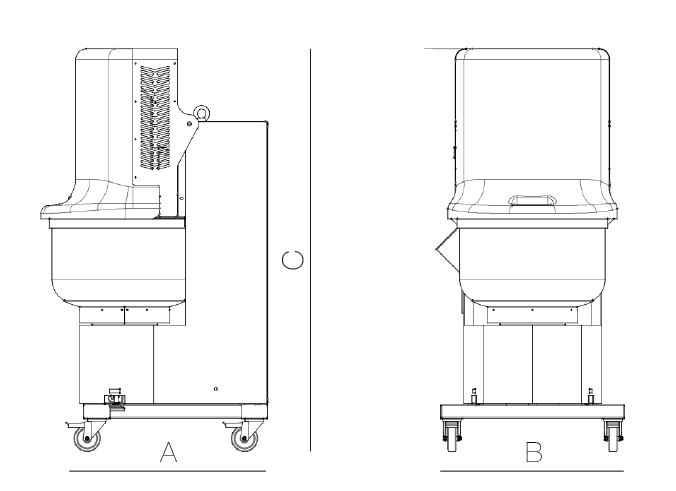

model | dough capacity |
motor | STROKES /MIN |
weight | dimensions | power supply | ||
---|---|---|---|---|---|---|---|---|
Kg | kW | nr. | Kg | A cm |
B cm |
C cm |
||
KPT 46 | 46 | 1.5/2.2 | 40-60 | 296 | 87 | 70 | 133 | 400V | 50Hz | 3Ph |
KPT 57 | 54 | 1.5/2.2 | 40-60 | 299 | 88 | 70 | 140 | 400V | 50Hz | 3Ph |
KPT 64 | 64 | 1.5/2.2 | 40-60 | 300 | 87 | 70 | 142 | 400V | 50Hz | 3Ph |
KPT 100 | 100 | 2.0/3.2 | 40-60 | 489 | 107 | 83 | 164 | 400V | 50Hz | 3Ph |
KPT 110 | 110 | 2.0/3.2 | 40-60 | 490 | 107 | 83 | 167 | 400V | 50Hz | 3Ph |
KPT 130 | 130 | 3.7/5.9 | 40-60 | 736 | 110 | 93 | 184 | 400V | 50Hz | 3Ph |
KPT 155 | 155 | 3.7/5.9 | 40-60 | 745 | 110 | 93 | 191 | 400V | 50Hz | 3Ph |
