Mixer
Spiral mixer
self tipping
120 - 160 - 200 - 250 Kg
Self-tipping spiral mixers combining a fixed bowl spiral mixer with a hydraulic lifter suitable for an artisan use for soft dough mixtures with more than 55% hydration.
Technical data
- Models available: 120 kg - 160 kg - 200 kg - 250 kg dough capacity.
- 2 separate motors 1 on the mixer and 1 on the lifter.
- 2 speed spiral tool.
- Possibility of bowl reverse rotation in 1st speed.
- Control panel with two electro-mechanical timers or electronic control panel + bypass selector.
- Choice of left or right side dough discharge.
- Two discharge heights available onto table at 1400 mm or into divider at 1900 mm.
- Reinforced version available for stiff dough with more than 45% hydration.
| model | dough capacity |
spiral motor |
bowl motor |

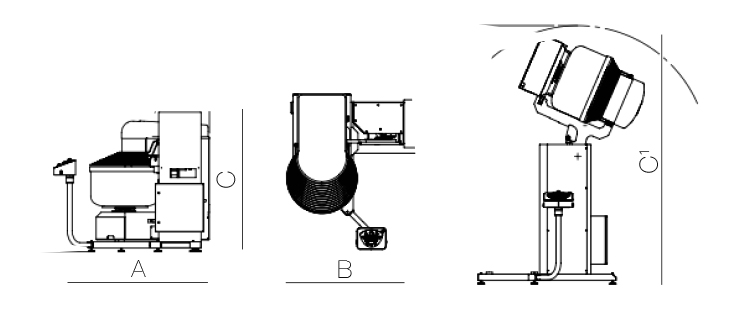

weight | dimensions | discharge height |
|||
|---|---|---|---|---|---|---|---|---|---|
| Kg | kW | kW | Kg | A cm |
B cm |
C cm |
C₁ cm |
mm | |
| KML 120 B | 120 | 2.6/5.2 | 0.55 | 1045 | 184 | 151 | 176 | 250 | 1400 |
| KML 120 T | 120 | 2.6/5.2 | 0.55 | 1175 | 184 | 173 | 176 | 305 | 1900 |
| KML 160 B | 160 | 5.5/10.3 | 0.75 | 1235 | 195 | 165 | 180 | 268 | 1400 |
| KML 160 T | 160 | 5.5/10.3 | 0.75 | 1365 | 195 | 173 | 180 | 320 | 1900 |
| KML 200 B | 200 | 5.5/10.3 | 0.75 | 1245 | 195 | 165 | 181 | 270 | 1400 |
| KML 200 T | 200 | 5.5/10.3 | 0.75 | 1375 | 195 | 173 | 182 | 324 | 1900 |
| KML 250 B | 250 | 6.0/12.0 | 1.1 | 1300 | 198 | 165 | 186 | 278 | 1400 |
| KML 250 T | 250 | 6.0/12.0 | 1.1 | 1425 | 198 | 173 | 187 | 331 | 1900 |
