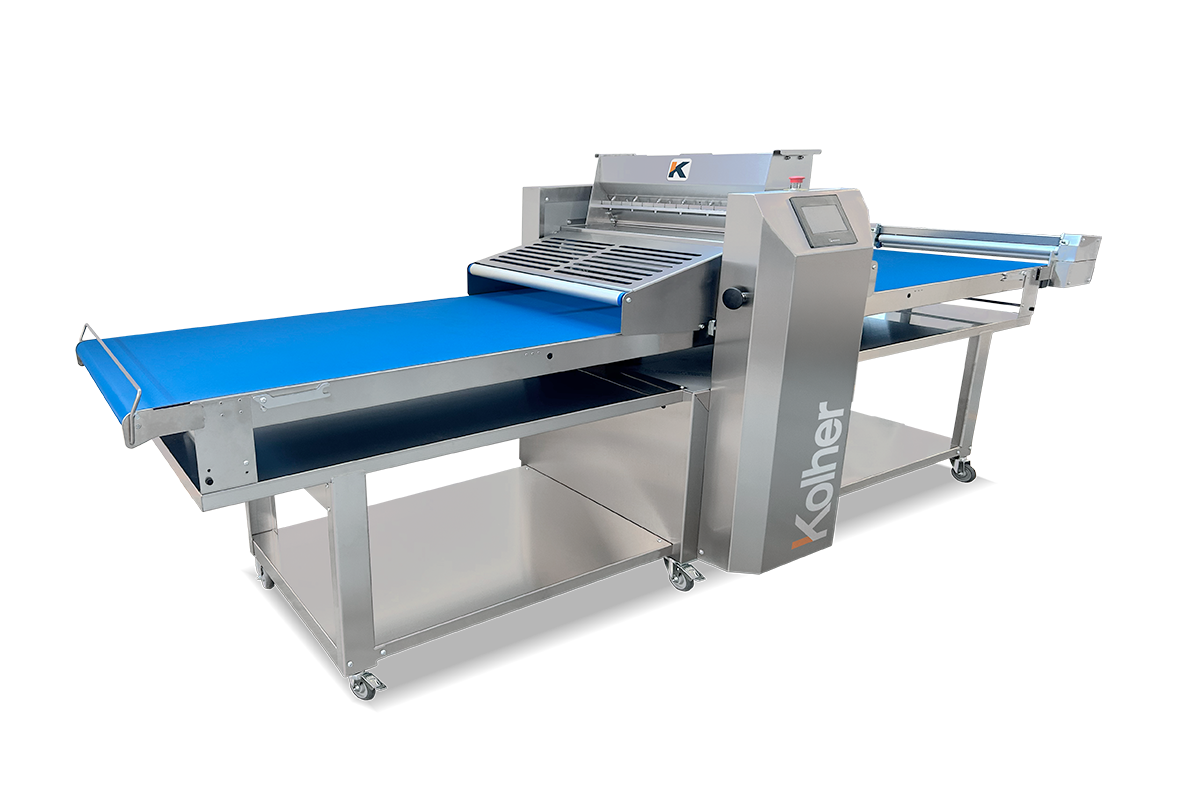

Dough sheeter
Dough sheeter
automatic
650 - 700 Kg
This noiseless and reliable dough sheeter is fitted with wide cylinders (diameter 80mm) activated by a new up-and-down moving system by oil bath screws that ensure an absolute precision of lamination.

Technical Data
- Two rolling pins provided.
- Removable tables.
- Color touch screen display with 100 storable programs (7” on KSA 650 and 10” on KSA 700).
- Automatic and removable flour duster
- Automatic coiler.

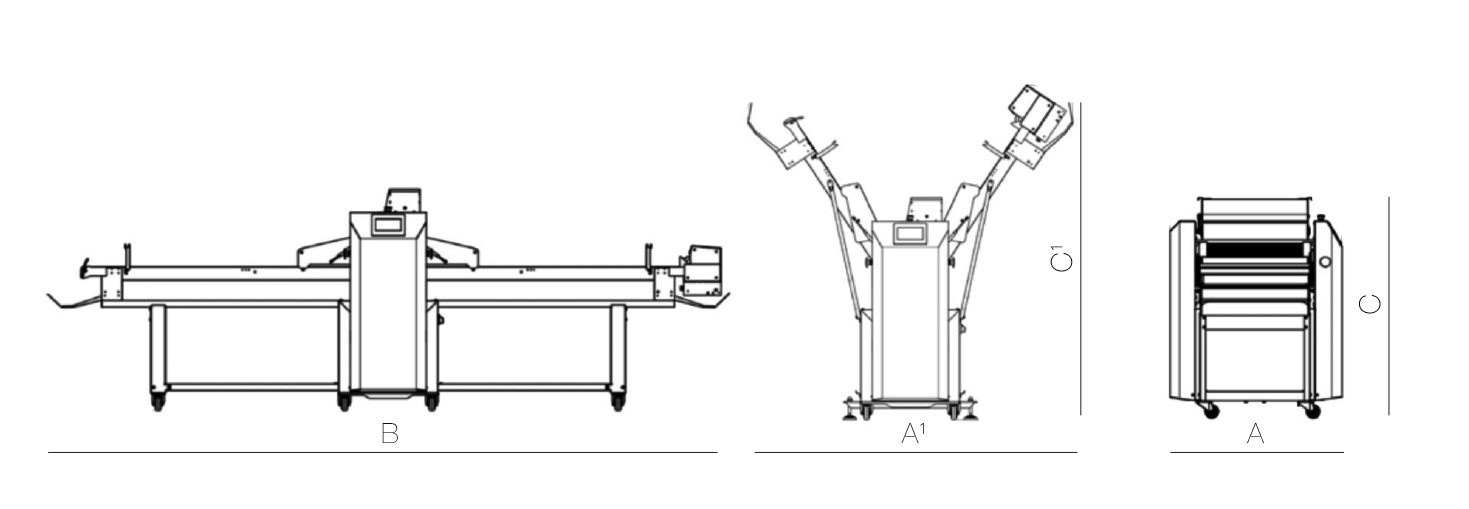

model | table length |
power | speed | weight | dimensions when opened |
dimensions when closed |
||||
---|---|---|---|---|---|---|---|---|---|---|
mm | kW | m/min | Kg | A cm |
B cm |
C cm |
A₁ cm |
B₁ cm |
C₁ cm |
|
KSA 650 |
1200 | 2.1 | 10-60 | 370 | 293 | 104 | 126 | 196 | 104 | 207 |
1400 | 2.1 | 10-60 | 370 | 333 | 104 | 126 | 218 | 104 | 220 | |
1600 | 2.1 | 10-60 | 370 | 373 | 104 | 126 | 240 | 104 | 239 | |
1800 | 2.1 | 10-60 | 370 | 413 | 104 | 126 | 263 | 104 | 253 | |
2000 | 2.1 | 10-60 | 370 | 453 | 104 | 126 | 285 | 104 | 270 | |
KSA 700 |
1600 | 3.1 | 5-70 | 410 | 378 | 107 | 138 | 240 | 107 | 239 |
1800 | 3.1 | 5-70 | 410 | 418 | 107 | 138 | 263 | 107 | 253 | |
2000 | 3.1 | 5-70 | 410 | 458 | 107 | 138 | 285 | 107 | 270 |
