Divider and rounder
Divider
SQUARE - HEXAGONAL - BUTTER PRESS - DOUBLE CUT - GRID HOLDER
Square divider/Hexagonal divider, hydraulic machine suitable for dividing unleavened dough in equal parts.
Technical Data
- KDS/KDE Semi-automatic divider (pressing and cutting by joystick and manual lid opening).
- KDS/KDE Automatic divider (automatic pressing, cutting and lid opening by color touch-screen).
- KDS double cut Semi-automatic, 10 or 20 divisions and 15 or 30 divisions (pressing and cutting by joystick and manual lid opening).
- KDS double cut Automatic, 10 or 20 divisions and 15 or 30 divisions (automatic pressing, cutting and lid opening by color touch-screen).
- divider.dato-5
- KBP Semiautomatic (pressing by joystick and manual lid opening).

Divider

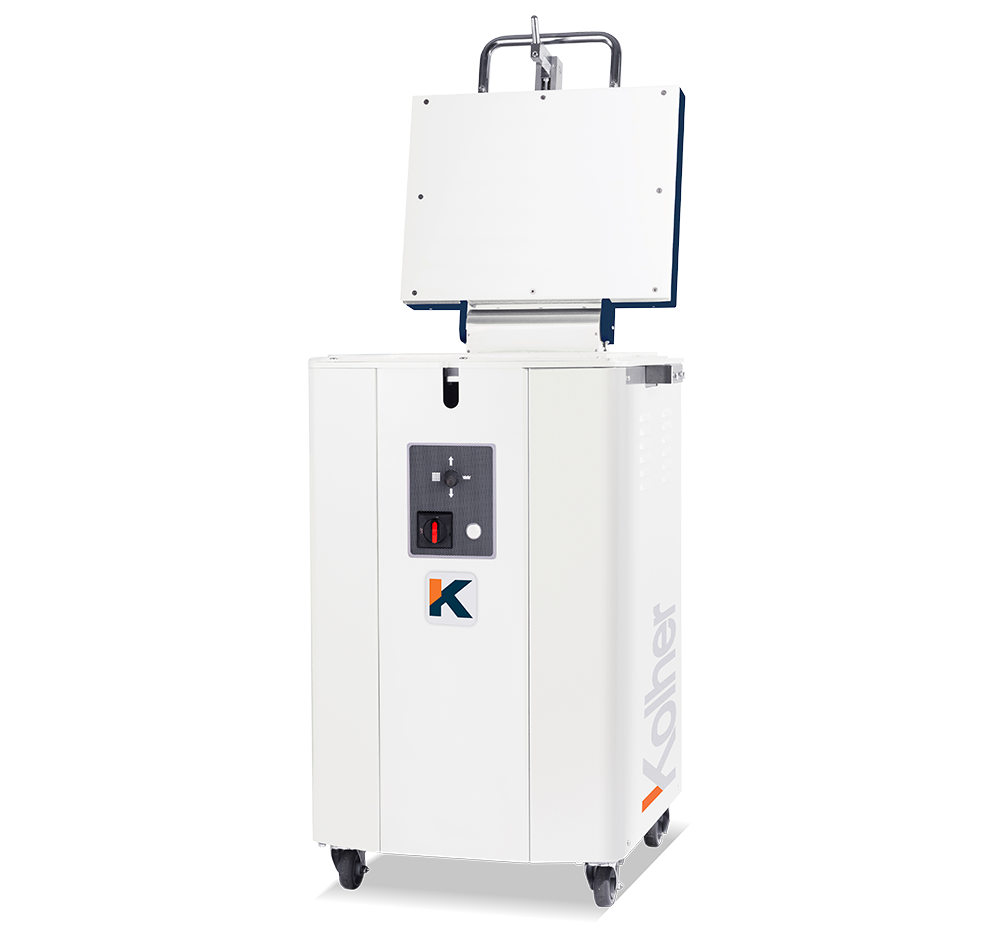

basic model

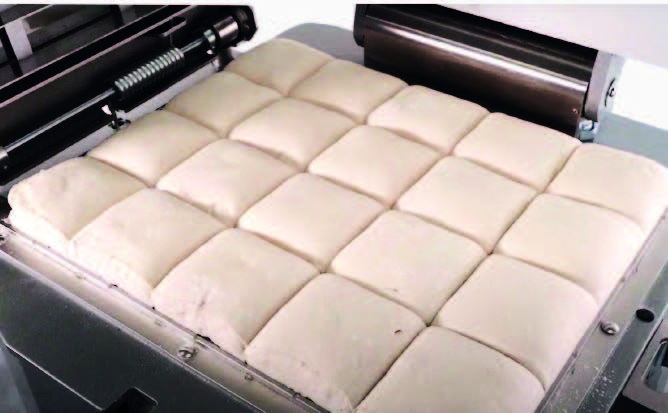

KDS

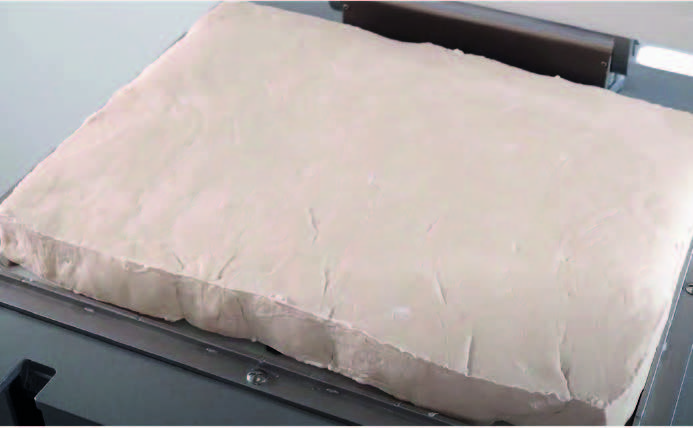

KBP

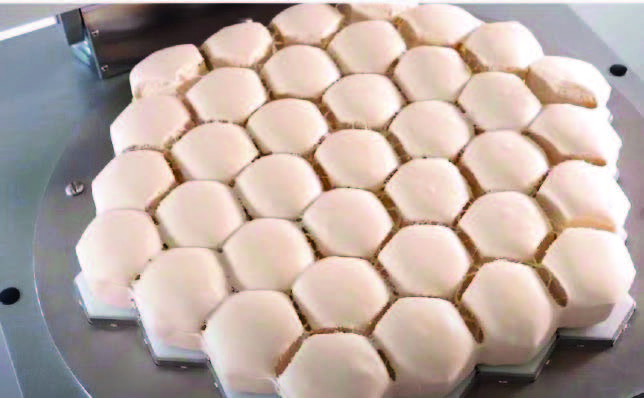

KDE

questo modello di spezzatrice offre la possibilità di poter scegliere quale tipologia di...
testo fornito

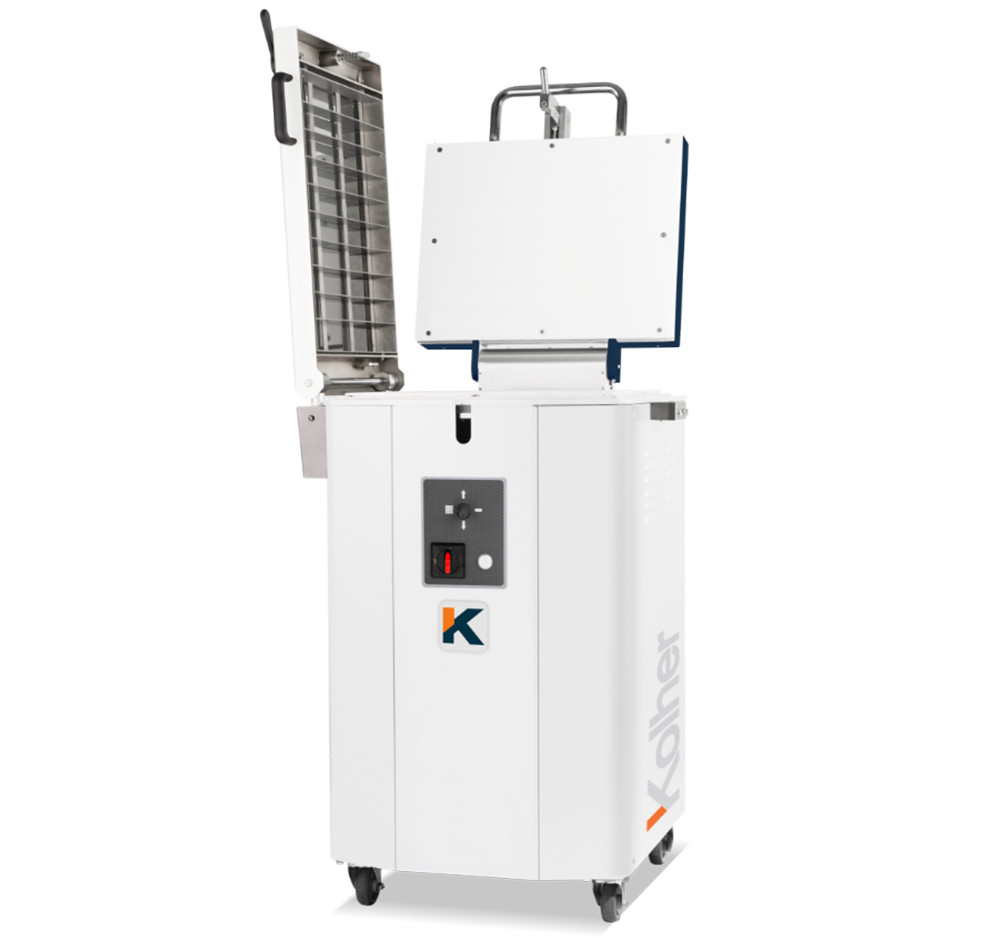

Divider
model with grid

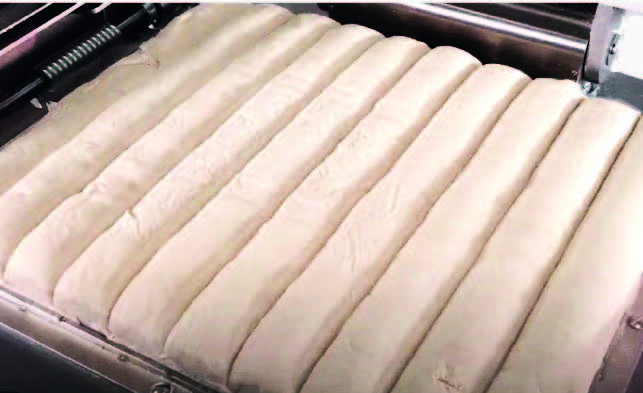

KDS GRID


model | cycle | division | production | dough capacity |
weight range |

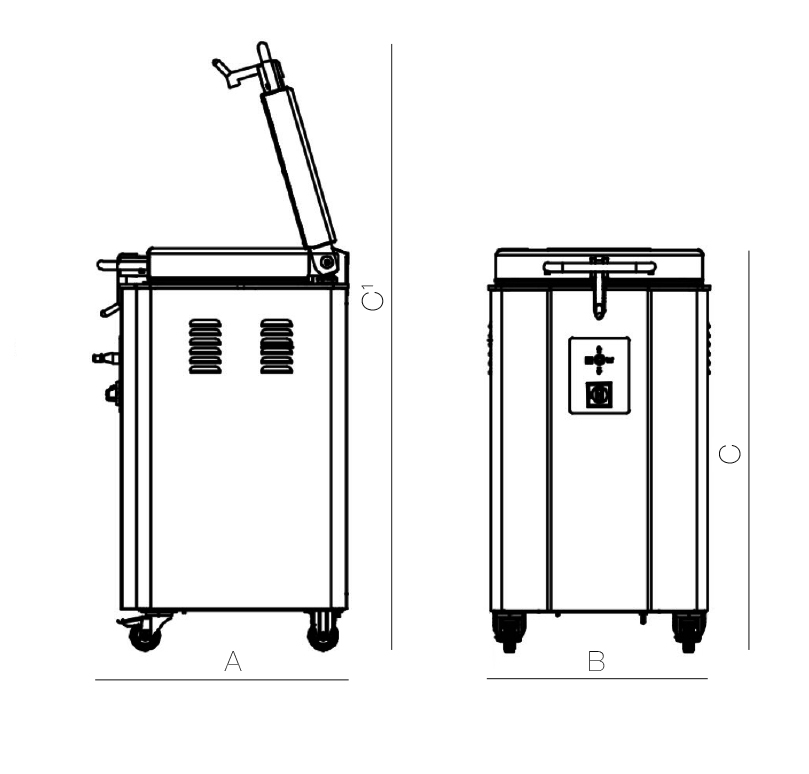

motor | weight | presser | dimensions | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
nr. | pcs/hr | Kg | g | kW | Kg | mm | A cm |
B cm |
C cm |
C₁ cm |
|||
KDS | Semi | Auto | 10 | 900 | 20 | 300-2000 | 0.75 | 240 | 200x100 | 69 | 60 | 109 | 65 |
KDS | Semi | Auto | 20 | 1800 | 20 | 150-1000 | 0.75 | 240 | 100x100 | 69 | 60 | 109 | 165 |
KDS | Semi | Auto | 24 | 2100 | 20 | 120-820 | 0.75 | 240 | 100x80 | 69 | 60 | 109 | 165 |
KDS | Semi | Auto | 30 | 2700 | 20 | 90-650 | 0.75 | 240 | 80x80 | 69 | 60 | 109 | 165 |
KDS Double | Semi | Auto | 10/20 | 900/1800 | 16 | 150-1600 | 0.75 | 240 | 100x100 200x100 |
69 | 60 | 109 | 165 |
KDS Double | Semi | Auto | 15/30 | 1350/2700 | 16 | 90-1050 | 0.75 | 240 | 80x80 163x80 |
69 | 60 | 109 | 165 |
KBP | Semi | Auto | 1 | 60 | 23 | - | 0.75 | 240 | 512x409 | 70 | 60 | 109 | 165 |
KDS Grid | Semi | - | Various | Various | 6 | Various | 0.75 | 255 | Various | 88 | 71 | 169 | 169 |
KDE | Semi | Auto | 19 | 2280 | 5.7 | 90-300 | 0.75 | 190 | 85 | 69 | 55 | 109 | 162 |
KDE | Semi | Auto | 37 | 4400 | 4.8 | 30-130 | 0.75 | 190 | 57 | 69 | 55 | 109 | 162 |
KDE | Semi | Auto | 37 | 4400 | 5 | 35-135 | 0.75 | 190 | 60 | 69 | 55 | 109 | 162 |
KDE | Semi | Auto | 37 | 4400 | 6 | 40-160 | 0.75 | 190 | 63 | 69 | 55 | 109 | 162 |
